PriceList for Acs712 - LT3042EMSE#TRPBF IC REG LIN POS ADJ 200MA 10MSOP – Ronghua Detail:

Product Parameter

Description

The LT®3042 is a high performance low dropout linear regulator featuring LTC’s ultralow noise and ultrahigh PSRR architecture for powering noise sensitive RF applications. Designed as a precision current reference followed by a high performance voltage buffer, the LT3042 can be easily paralleled to further reduce noise, increase output current and spread heat on the PCB. The device supplies 200mA at a typical 350mV dropout voltage. Operating quiescent current is nominally 2mA and drops to <<1µA in shutdown. The LT3042’s wide output voltage range (0V to 15V) while maintaining unitygain operation provides virtually constant output noise, PSRR, bandwidth and load regulation, independent of the programmed output voltage. Additionally, the regulator features programmable current limit, fast start-up capability and programmable power good to indicate output voltage regulation. The LT3042 is stable with a minimum 4.7µF ceramic output capacitor. Built-in protection includes reverse battery protection, reverse current protection, internal current limit with foldback and thermal limit with hysteresis. The LT3042 is available in thermally enhanced 10-Lead MSOP and 3mm × 3mm DFN packages.

Specifications:
Attribute	Value
Category	Integrated Circuits (ICs)
	PMIC – Voltage Regulators – Linear
Mfr	Analog Devices Inc.
Series	-
Package	Tape & Reel (TR)
	Cut Tape (CT)
	Digi-Reel®
Part Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage – Input (Max)	20V
Voltage – Output (Min/Fixed)	0V
Voltage – Output (Max)	15V
Voltage Dropout (Max)	0.35V @ 200mA (Typ)
Current – Output	200mA
PSRR	117dB ~ 56dB (120Hz ~ 10MHz)
Control Features	Current Limit, Enable, Power Good
Protection Features	Over Temperature, Reverse Polarity
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	10-TFSOP, 10-MSOP (0.118″, 3.00mm Width) Exposed Pad
Supplier Device Package	10-MSOP-EP
Base Product Number	LT3042

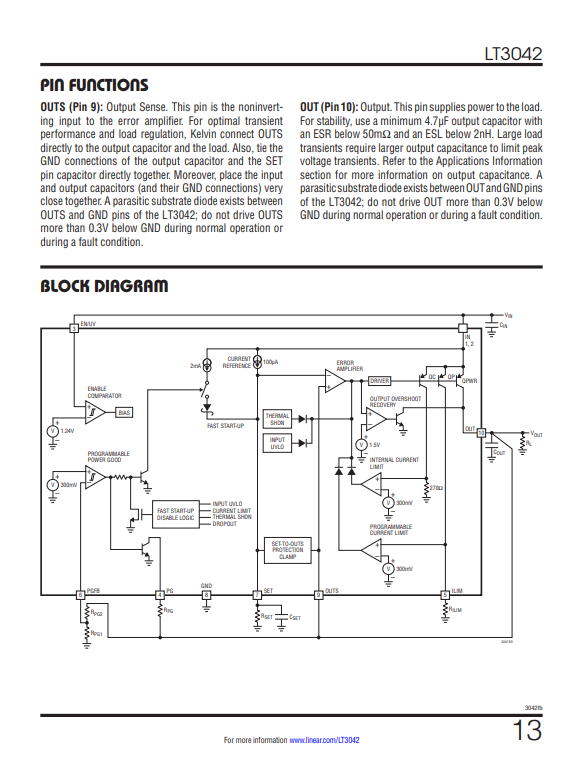

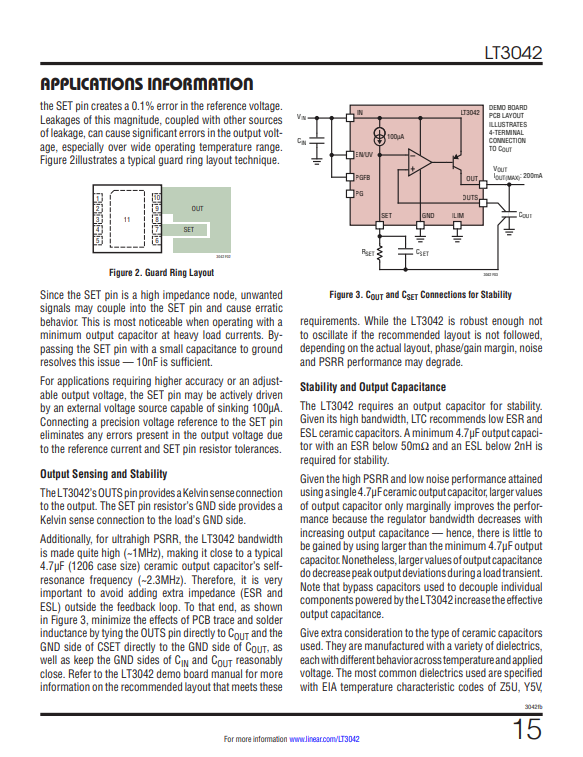

Product detail pictures:
